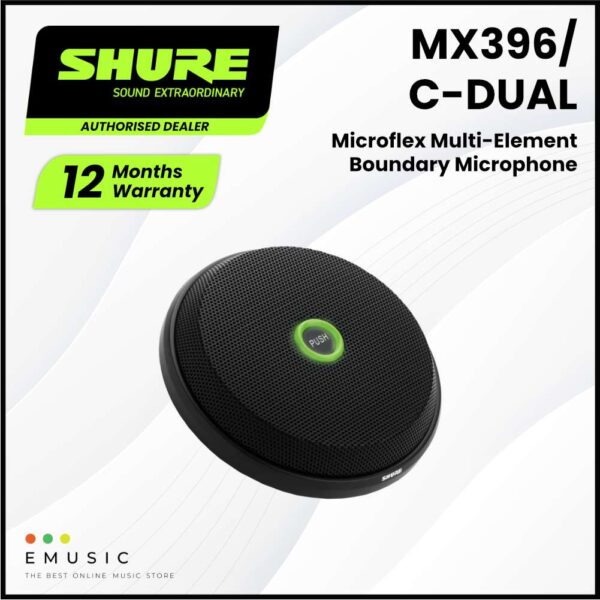

The Shure MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone combines two cardioid condenser elements in a single low-profile housing, providing wide conference-table coverage while requiring fewer visible microphones.
Each element has an independent audio output for individual mixer control, while the programmable mute switch, bi-color LED status indicator, TTL logic connections, CommShield® RF filtering, and configurable rear or bottom cable routing make the MX396/C-DUAL ideal for professional boardrooms, conferencing, education, and permanent installed sound systems.
| Microphone Type | Dual-Element Electret Condenser Boundary Microphone |
| Number of Elements | 2 |
| Pickup Pattern | Cardioid × 2 |
| Coverage | Dual-Element / 0–180° Configuration |
| Frequency Response | 50 Hz–17 kHz |
| Sensitivity | -35 dBV/Pa (18 mV/Pa) at 1 kHz |
| Maximum SPL | 122 dB SPL |
| Equivalent Output Noise | 30 dB SPL-A |
| Signal-to-Noise Ratio | 64 dB |
| Dynamic Range | 92 dB |
| Output Impedance | 170 Ω |
| Output Configuration | Active Balanced, Individual Output Per Element |
| Cable | 6.1 m / 20 ft Attached Unterminated Cable |
| Cable Construction | Three Shielded Audio Pairs + Three Shielded Logic Conductors |
| Cable Exit | Rear or Bottom Exit |
| Mute Switch | Programmable Membrane Switch |
| Mute Attenuation | ≥50 dB |
| Status Indicator | Bi-Color LED |
| Logic Control | LED Input & Switch Logic Output, TTL Compatible |
| Low-Cut Filter | Selectable, 6 dB/Octave Below 150 Hz |
| RF Protection | CommShield® Technology |
| Power Requirement | 48–52 V DC Phantom Power, 19 mA |
| Dimensions | 110 × 24 mm (Diameter × Height) |
| Weight | 594 g |
| Color | Black |
| Recommended Applications | Conference Rooms Boardrooms Meeting Tables Education & Distance Learning Teleconferencing Installed Sound Systems |
| Included Accessories | Fastening Wing Nut Mounting Tube Rubber Isolation Rings × 2 R185B Cardioid Replacement Cartridge |
