Original price was: RM1,933.00.RM1,643.00Current price is: RM1,643.00.
The Shure MX392 Microflex Boundary Condenser Microphone is designed for professional conference rooms, boardrooms, lecterns, houses of worship, distance learning, and installed sound applications. Its low-profile design features an interchangeable condenser cartridge, programmable silent membrane switch, LED status indicator, and TTL logic input/output for integration with compatible automatic mixers and control systems.

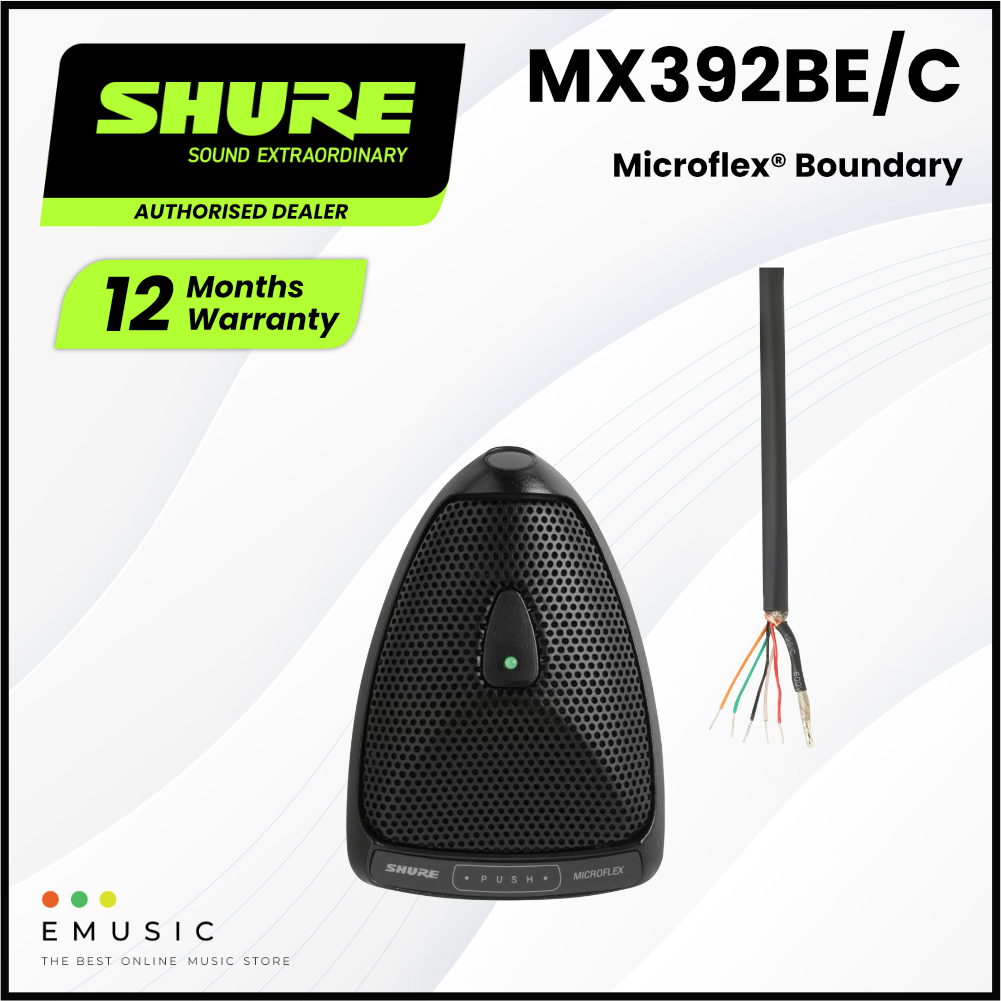

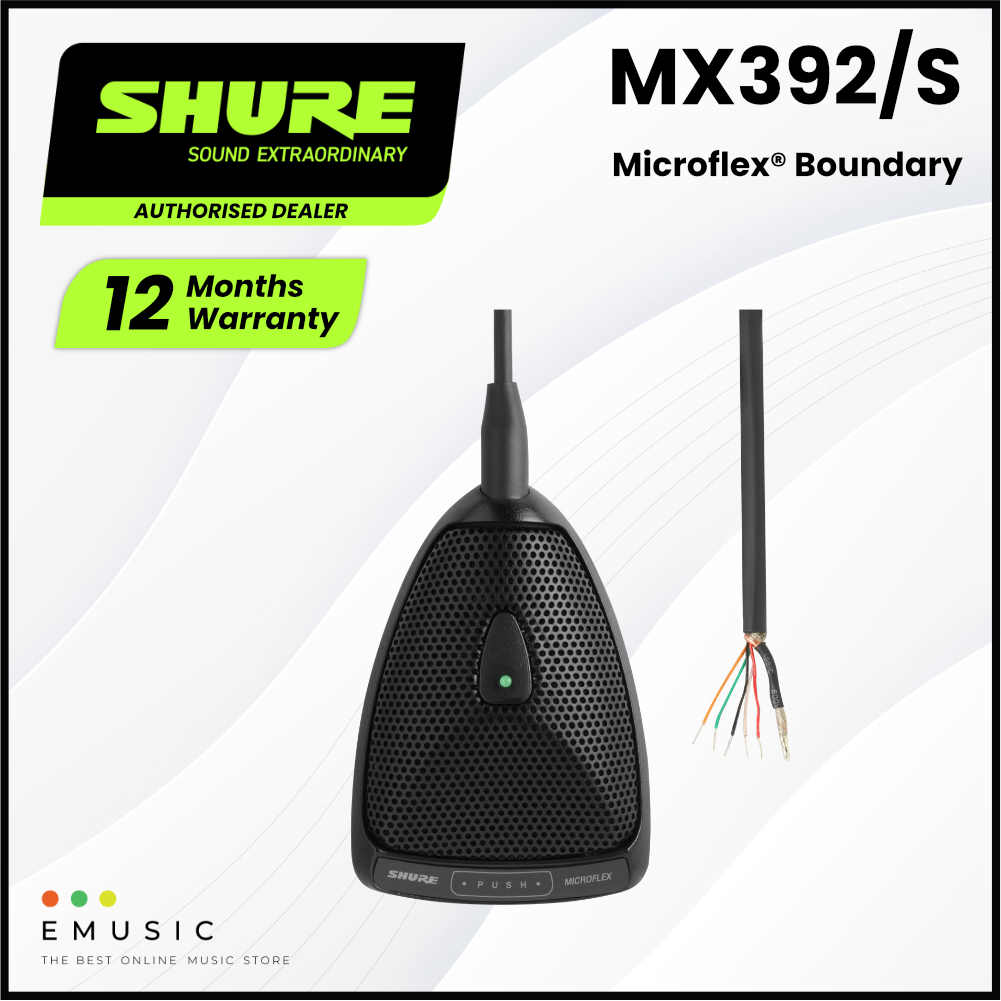

Choose the Supercardioid / Back Exit configuration for tighter sound isolation with rear cable routing, or the Cardioid / Bottom Exit configuration for broader pickup with discreet through-surface cable installation.
| Specification | MX392/S | MX392BE/C |
| Configuration | Supercardioid / Back Exit | Cardioid / Bottom Exit |
| Microphone Type | Electret Condenser Boundary | Electret Condenser Boundary |
| Pickup Pattern | Supercardioid | Cardioid |
| Cable Exit | Back / Rear Exit | Bottom Exit |
| Frequency Response | 50 Hz–17 kHz | 50 Hz–17 kHz |
| Sensitivity | -26.5 dBV/Pa | -30 dBV/Pa |
| Maximum SPL | Approx. 116 dB SPL | 119 dB SPL |
| Dynamic Range | 94 dB | 96 dB |
| Equivalent Noise | 22 dB SPL-A | 23 dB SPL-A |
| Output Impedance | 150 Ω Rated (180 Ω Actual) | 150 Ω Rated (180 Ω Actual) |
| Output Configuration | Active Balanced, Transformerless | Active Balanced, Transformerless |
| Cable | 3.7 m / 12 ft Attached, Unterminated | 3.7 m / 12 ft Attached, Unterminated |
| Connection | Screw Terminal / Unterminated Leads | Screw Terminal / Unterminated Leads |
| Programmable Switch | Silent Membrane Switch | Silent Membrane Switch |
| Switch Functions | Push-to-Talk / Push-to-Mute / Push-On/Off | Push-to-Talk / Push-to-Mute / Push-On/Off |
| LED Indicator | Yes | Yes |
| Logic Connections | TTL Logic LED Input & Switch Output | TTL Logic LED Input & Switch Output |
| Power Requirement | 11–52 V DC Phantom Power | 11–52 V DC Phantom Power |
| Dimensions | 108.3 × 76.2 mm | 108.3 × 76.2 mm |
| Weight | 172 g | 172 g |
| Color | Black | Black |
| Recommended Applications | Conference Rooms Lecterns Houses of Worship Focused Speech Pickup Installed Sound |
Conference Rooms Boardrooms Meeting Tables Lecterns Permanent Installations |
