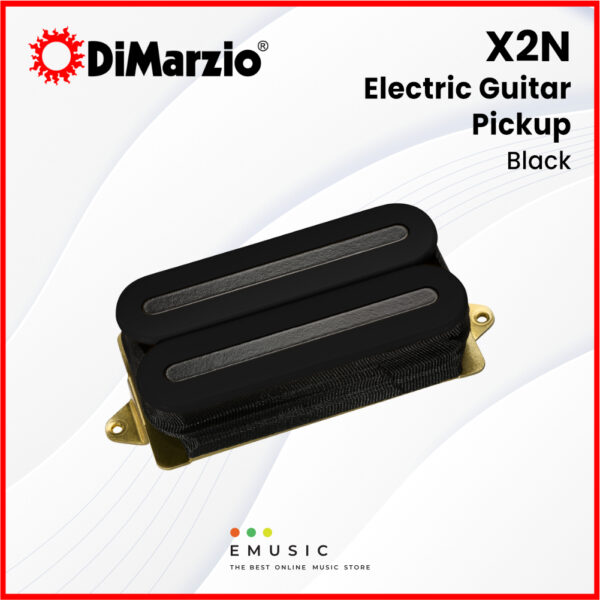

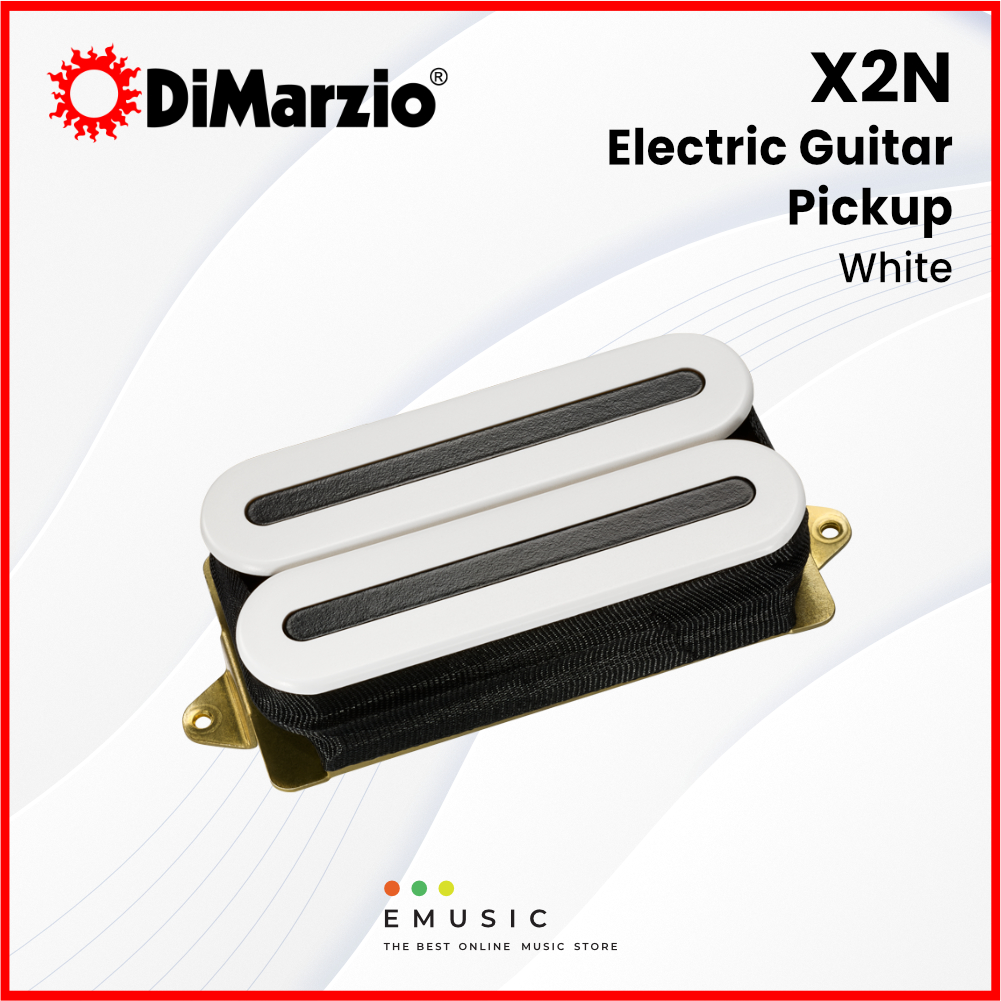

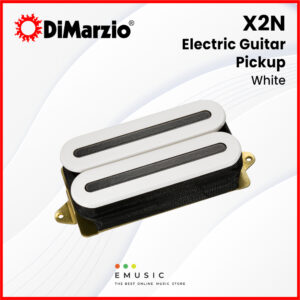

DiMarzio X2N High-Output Humbucker Electric Guitar Pickup – Black, White

Original price was: RM610.00.Current price is: RM518.50.

  • Extreme 510mV Output – One of DiMarzio’s highest-output passive humbuckers, designed to deliver aggressive tones and push compatible amplifiers into overdrive.
  • Powerful Ceramic Magnet – Produces thick bass, strong midrange frequencies, and a commanding string attack for heavy rock and metal.
  • Distinctive Twin-Blade Design – Provides continuous magnetic coverage for consistent string response, even during expressive bends.
  • Versatile Four-Conductor Wiring – Supports coil splitting and series/parallel configurations for additional tonal flexibility.
  • Universal String Spacing – Suitable for compatible Standard and F-spaced guitar configurations without requiring separate pickup models.
  • Two Colour Options – Available in Black and White, both featuring identical high-output performance and passive, battery-free operation.
Pre-Order
WhatsApp Us
DiMarzio X2N High-Output Humbucker Electric Guitar Pickup – Black, White

Unleash extreme power and aggressive guitar tone with the DiMarzio DP102 X2N High-Output Humbucker Pickup, one of DiMarzio’s most powerful passive guitar pickups. Designed for guitarists seeking maximum output, intense distortion, and commanding string attack, the X2N delivers an unmistakably bold sound that excels in hard rock, heavy metal, and other high-gain playing styles.

Introduced in 1979, the DiMarzio X2N was developed to push tube amplifiers into powerful overdrive. Its extremely high-output design produces a strong signal with thick bass frequencies, pronounced midrange, and a forceful attack, making it particularly suitable for aggressive rhythm playing, heavy riffs, and sustained lead guitar solos.

At the heart of the pickup is a powerful ceramic magnet combined with two distinctive wide-blade pole pieces. Unlike conventional humbuckers that use individual pole screws, the X2N’s dual-blade construction provides continuous magnetic coverage across the strings. This helps maintain a consistent response during string bending and supports balanced articulation across the fretboard.

With an impressive 510mV output rating, the X2N delivers a substantially stronger signal than many traditional humbuckers. Its focused magnetic field captures the character of the instrument while adding considerable power, making it an excellent choice for guitarists who want a more aggressive amplifier response.

Despite its extreme output, the X2N offers surprising versatility. Its four-conductor wiring supports coil splitting and series/parallel humbucking configurations when connected to compatible switching electronics. These additional wiring options allow players to explore brighter, more open sounds while retaining the pickup’s distinctive character.

Designed primarily for the bridge position of solid-body electric guitars, the X2N is particularly effective when paired with other relatively high-output pickups. Its universal blade-style design also makes it suitable for guitars with different string spacings, eliminating the need to choose between conventional Standard and F-spaced versions.

Available in Black (DP102BK) and White (DP102W), both variations feature the same high-output ceramic magnet construction, dual-blade design, and electronic specifications. Players can select the finish that best complements their guitar without changing its intended tonal performance.

Whether you’re upgrading your guitar for aggressive metal rhythms, powerful rock solos, or maximum-output distortion, the DiMarzio X2N Humbucker Pickup delivers extraordinary power, reliable performance, and versatile tonal possibilities.






Specifications
BrandDiMarzio
ModelDP102
SeriesX2N
Product TypeElectric Guitar Humbucker Pickup
Pickup ConfigurationFull-Size Humbucker
Pickup DesignPassive, High-Output
Recommended PositionBridge
Recommended Guitar TypeSolid-Body Electric Guitar
Magnet TypeCeramic
Pole Piece DesignTwin Wide-Blade Pole Pieces
Wiring4-Conductor
Wiring OptionsSeries Humbucking, Parallel Humbucking, Coil Splitting
Quick ConnectYes
DC Resistance15.83 kOhm
Output510 mV
Bass EQ9.0
Low Mid EQ8.5
High Mid EQ8.5
Treble EQ3.5
String SpacingUniversal
Available ColoursBlack / White
Model – BlackDP102BK
Model – WhiteDP102W
Compatible Instruments6-String Electric Guitars with Compatible Humbucker Routing
Battery RequiredNo
Year Introduced1979
Package Contents1 x X2N Humbucker Pickup
