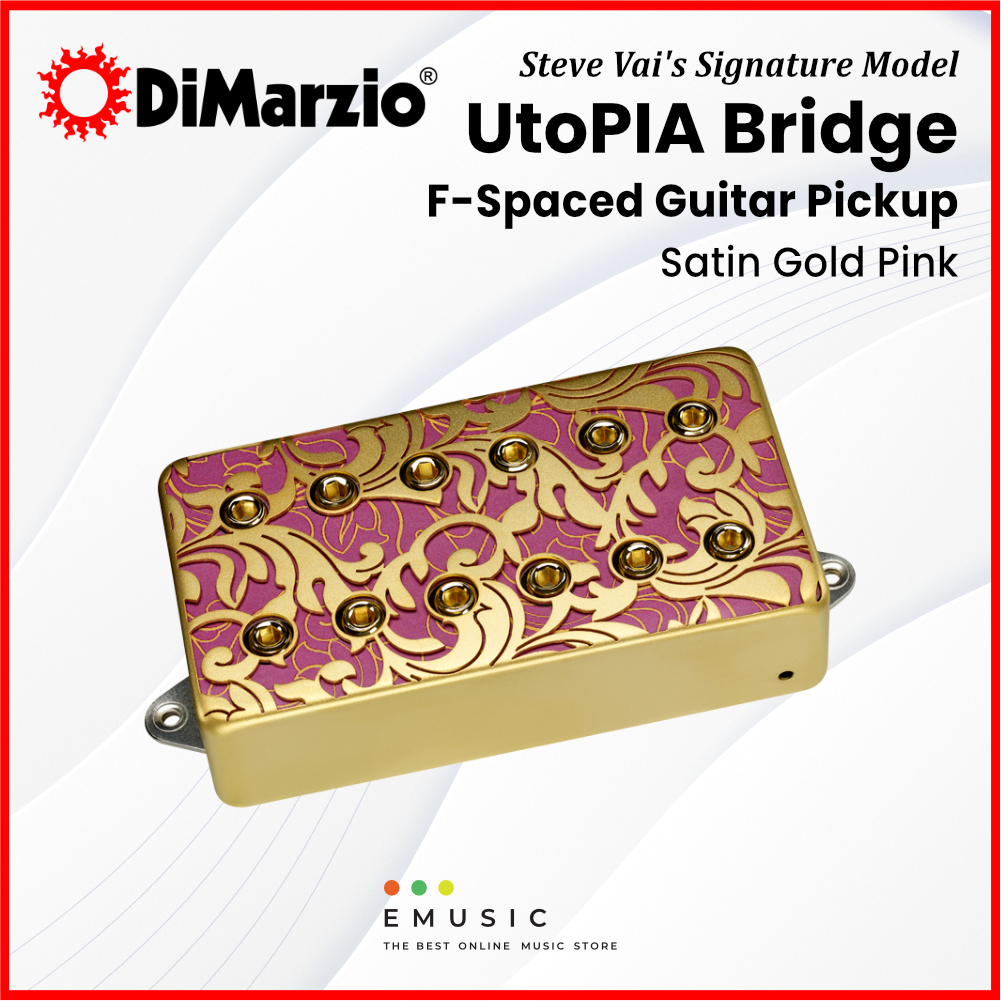

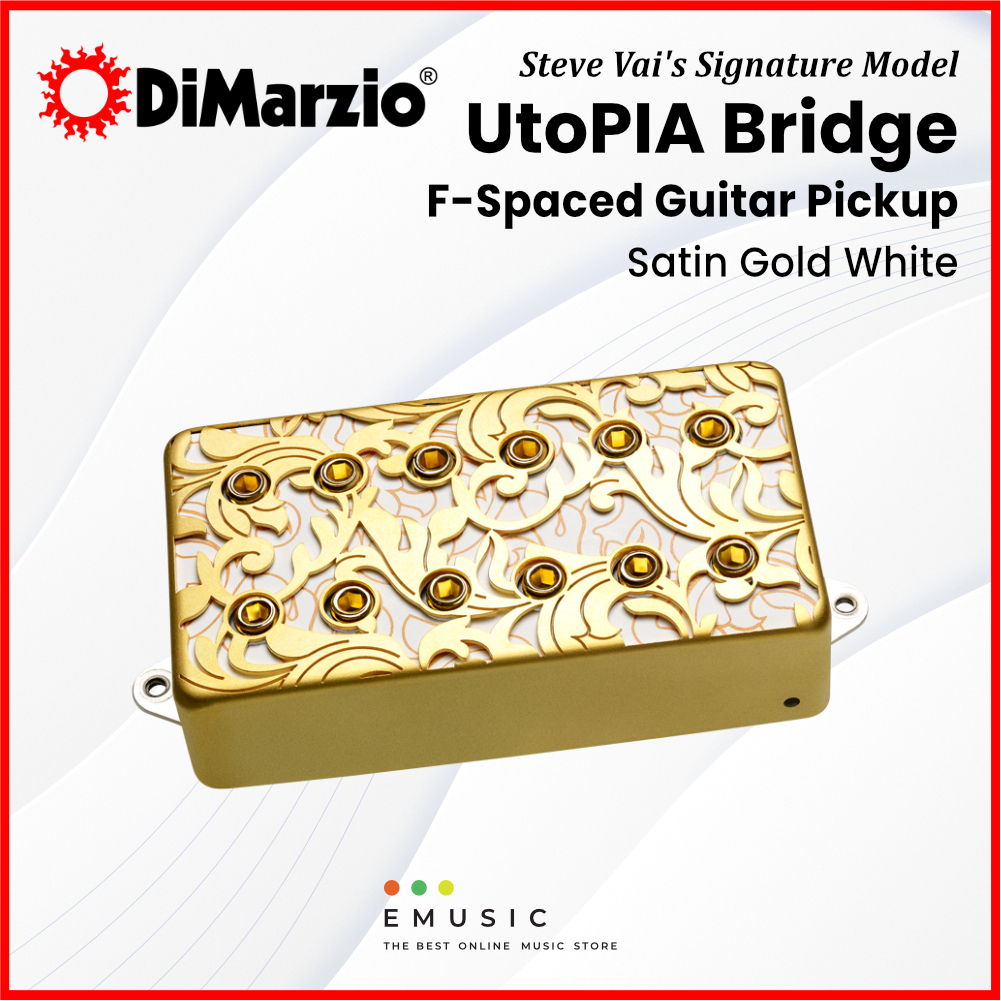

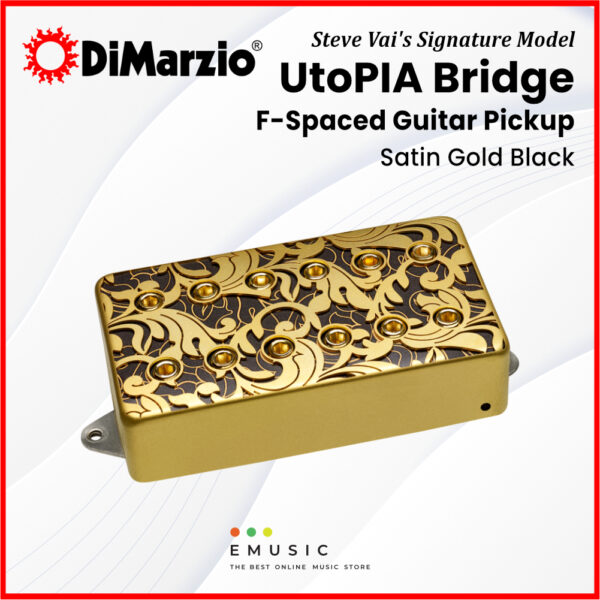

DiMarzio Steve Vai Signature Model UtoPIA Bridge Humbucker Pickup – Satin Gold

Original price was: RM990.00 – RM1,010.00Price range: RM990.00 through RM1,010.00.Current price is: RM841.50 – RM858.50Price range: RM841.50 through RM858.50.

  • Steve Vai Signature UtoPIA Bridge Pickup – Developed for the Ibanez PIA electric guitar with exceptional power and articulation.
  • Ceramic Magnet with 411mV Output – Delivers high-output performance with clear attack and strong dynamic response.
  • Powerful Bass and Thick High Frequencies – Produces rich rhythm tones and smooth, full-bodied lead sounds.
  • Refined Upper-Midrange Response – Offers greater tonal control and reduced harshness compared with the original Evolution Bridge.
  • Premium Laser-Cut Baroque Cover – Features an elegant Satin Gold design with Black, Pink or White detailing.
  • F-Spaced Four-Conductor Construction – Provides compatibility with suitable six-string guitars and versatile switching options.
Pre-Order
WhatsApp Us
DiMarzio Steve Vai Signature Model UtoPIA Bridge Humbucker Pickup – Satin Gold

Discover exceptional power, expressive harmonics and distinctive premium styling with the DiMarzio DP289F UtoPIA Bridge Steve Vai Signature Humbucker Pickup. Developed in collaboration with legendary guitarist Steve Vai, the UtoPIA Bridge combines the aggressive character of the renowned Evolution Bridge with enhanced warmth, fuller bass and greater tonal control.

Originally designed for Steve Vai’s signature Ibanez PIA electric guitar, the UtoPIA Bridge was introduced in 2020 as part of a specially developed pickup series. Its design builds upon the powerful and articulate characteristics of the original Evolution Bridge while offering a thicker, more balanced sound suited to modern guitar performance.

One of the UtoPIA Bridge’s defining features is its powerful low-frequency response. DiMarzio refined the pickup’s voicing to provide additional bass depth and greater body in the upper frequencies, creating a full and muscular sound that remains articulate during fast passages and complex chord progressions.

Equipped with a ceramic magnet, the pickup delivers focused attack, excellent definition and a manufacturer-rated 411mV output. This high-output design provides substantial power for progressive rock, hard rock, metal and technically demanding instrumental performances.

Compared with the original Evolution Bridge, the UtoPIA features a more controlled upper-midrange response. This helps reduce excessive aggression while preserving the harmonic richness and clarity associated with Steve Vai’s signature sound. It is particularly effective for bright guitars that naturally emphasise upper-midrange frequencies.

With clean amplification, the pickup produces full-bodied chords and clear melodic passages. Under overdrive and distortion, it delivers thick rhythm tones, powerful sustain and detailed note separation, making it suitable for expressive lead playing and demanding high-gain performances.

Beyond its tonal performance, the UtoPIA Bridge features a distinctive custom laser-cut baroque-style cover positioned over a gold-patterned layer. This elegant design reflects the visual identity of Steve Vai’s Ibanez PIA guitar and gives the pickup a striking appearance.

Designed specifically for the bridge position of compatible six-string solid-body electric guitars, the UtoPIA Bridge is available exclusively with F-Spaced pole-piece alignment.

Its four-conductor wiring supports compatible switching configurations, including coil splitting and parallel humbucking. The pickup also works particularly well with the DiMarzio UtoPIA Middle (DP288F) for additional tonal versatility. For a complete signature pickup set, pair it with the UtoPIA Neck (DP287F).

Available in Satin Gold/Black, Satin Gold/Pink and Satin Gold/White, the DiMarzio UtoPIA Bridge combines powerful performance, refined tonal balance and distinctive artistic styling for guitarists seeking a premium Steve Vai signature pickup.






Specifications
BrandDiMarzio
ModelDP289F UtoPIA Bridge
SeriesUtoPIA
Signature ArtistSteve Vai
Product TypeElectric Guitar Humbucker Pickup
Pickup ConfigurationFull-Size 6-String Humbucker
Pickup DesignPassive, High-Output
Recommended PositionBridge
Magnet TypeCeramic
Wiring4-Conductor
Wiring OptionsSeries Humbucking, Coil Splitting and Parallel Humbucking with Compatible Electronics
Quick ConnectNo
DC Resistance12.95 kOhm
Output411 mV
Bass EQ6.5
Low Mid EQ7.5
High Mid EQ7.0
Treble EQ3.0
String Configuration6-String
String SpacingF-Spaced Only
Cover DesignCustom Laser-Cut Baroque Pattern Over Gold Layer
Cover FinishSatin Gold
Pole Piece ColourGold
Available Colour CombinationsSatin Gold/Black, Satin Gold/Pink, Satin Gold/White
Satin Gold / Black SKUDP289FSGBK
Satin Gold / Pink SKUDP289FSGPK
Satin Gold / White SKUDP289FSGW
Compatible Instruments6-String Solid-Body Electric Guitars with Compatible Full-Size Humbucker Routing
Recommended Pickup PairingDiMarzio UtoPIA Neck (DP287F) and UtoPIA Middle (DP288F)
Suggested Volume Pot500kOhm
Suggested Tone Pot500kOhm
Suggested Tone Capacitor0.022 uF
Battery RequiredNo
Year Introduced2020
Package Contents1 x UtoPIA Bridge Humbucker Pickup
