DiMarzio PAF® Master Bridge Humbucker Pickup – Black, Cream

Original price was: RM520.00.Current price is: RM442.00.

  • Vintage PAF-Inspired Rock Tone – Combines classic humbucker clarity with a thick, aggressive response to picking.
  • Alnico 4 Magnet Construction – Delivers enhanced body and attack while maintaining a natural vintage-output character.
  • 278mV Output – Offers expressive dynamics and articulate performance without excessive compression.
  • Exceptional Note Separation – Keeps chords clear and defined, even during complex rhythm passages.
  • Versatile Four-Conductor Wiring – Supports coil splitting and parallel humbucking with compatible electronics.
  • Black and Cream Colour Options – Available in two classic finishes with Standard pole-piece spacing.
Pre-Order
WhatsApp Us
DiMarzio PAF® Master Bridge Humbucker Pickup – Black, Cream

Experience classic humbucker character with exceptional clarity, dynamic response, and powerful rock tones with the DiMarzio DP261 PAF Master Bridge Electric Guitar Pickup. Designed for guitarists who appreciate vintage PAF warmth but want greater articulation and attack, the PAF Master Bridge delivers an expressive sound that responds naturally to every nuance of your playing.

Introduced in 2014, the PAF Master Bridge offers a distinctive combination of vintage-inspired tone and modern performance. Its design focuses on delivering a clear, dynamic response that remains musical whether you’re playing clean chords, crunchy rhythms, or expressive lead passages.

One of the pickup’s most important features is its Alnico 4 magnet. With its unique magnetic characteristics, Alnico 4 provides additional body and attack without requiring extremely high output. The result is a pickup that feels lively and powerful while retaining the openness and responsiveness of a traditional vintage-style humbucker.

With a manufacturer-rated 278mV output and 7.69kΩ DC resistance, the PAF Master Bridge delivers a balanced signal suitable for classic rock, blues, hard rock, and other styles requiring articulate rhythm and lead tones.

The pickup is particularly responsive to picking intensity. Gentle playing produces clean, detailed notes with excellent separation, while stronger picking brings out a thicker, more aggressive character. This makes the PAF Master Bridge ideal for guitarists who rely on dynamics and expressive technique rather than excessive pickup output.

Its clear tonal balance also helps complex chords remain defined. Even when playing multiple notes simultaneously, the pickup maintains articulation and harmonic detail, making it especially useful for crunchy rhythm parts, chord-based solos, and expressive melodic playing.

The PAF Master Bridge features a relatively tight bass response, balanced midrange, and smooth high frequencies. These characteristics allow it to produce bright, articulate cleans and a satisfying, snarling rock tone when pushed through an overdriven amplifier.

Designed primarily for the bridge position, the pickup can also be installed in the neck position when a different tonal balance is desired. It pairs particularly well with the DiMarzio PAF Master Neck (DP260) for a complementary combination of vintage-inspired warmth, clarity, and dynamic response.

Featuring four-conductor wiring, the PAF Master Bridge supports additional switching configurations, including coil splitting and parallel humbucking when installed with compatible electronics. Its passive construction requires no battery.

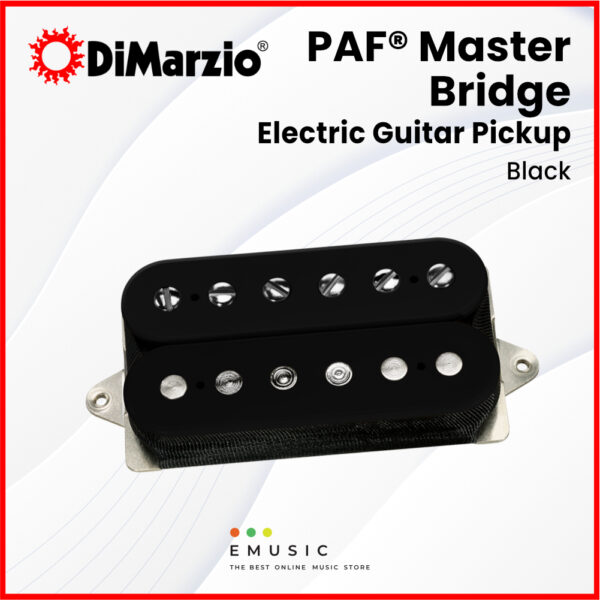

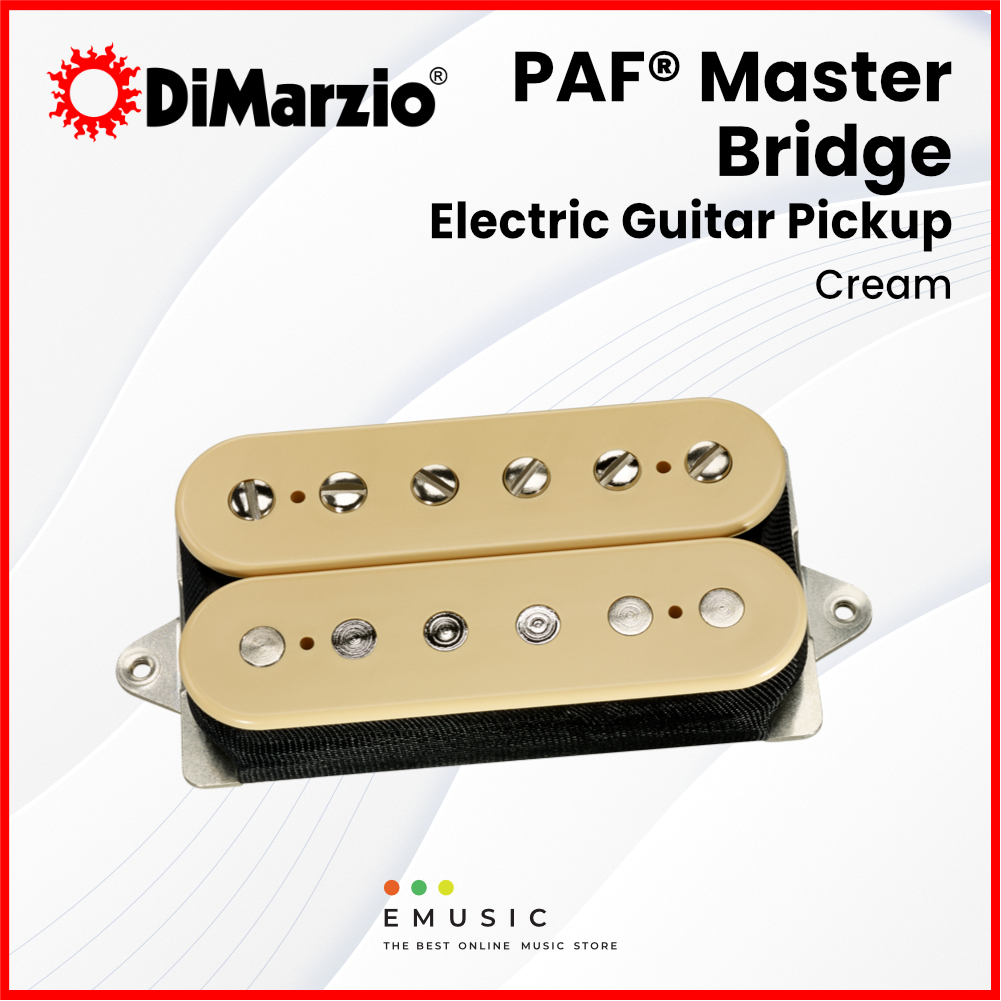

Available in Black (DP261BK) and Cream (DP261CR), the DiMarzio PAF Master Bridge is an excellent choice for guitarists seeking a responsive vintage-output humbucker with expressive attack, rich harmonic character, and unmistakable rock and roll personality.






Specifications
BrandDiMarzio
ModelDP261 PAF Master Bridge
SeriesPAF Master
Product TypeElectric Guitar Humbucker Pickup
Pickup ConfigurationFull-Size 6-String Humbucker
Pickup DesignPassive, Vintage-Output
Recommended PositionBridge (Neck Also Possible)
Magnet TypeAlnico 4
Wiring4-Conductor (1-Conductor Optional)
Quick ConnectNo
DC Resistance7.69 kOhm
Output278 mV
Bass EQ2.5
Low Mid EQ4.5
High Mid EQ4.5
Treble EQ4.5
String Configuration6-String
String SpacingStandard
Available ColoursBlack / Cream
Black SKUDP261BK
Cream SKUDP261CR
Recommended Pickup PairingDiMarzio PAF Master Neck (DP260)
Compatible Instruments6-String Electric Guitars with Compatible Full-Size Humbucker Routing
Recommended Volume Pot500kOhm
Recommended Tone Pot500kOhm
Recommended Tone Capacitor0.022 uF
Battery RequiredNo
Year Introduced2014
Package Contents1 x PAF Master Bridge Humbucker Pickup
