Original price was: RM600.00.RM510.00Current price is: RM510.00.

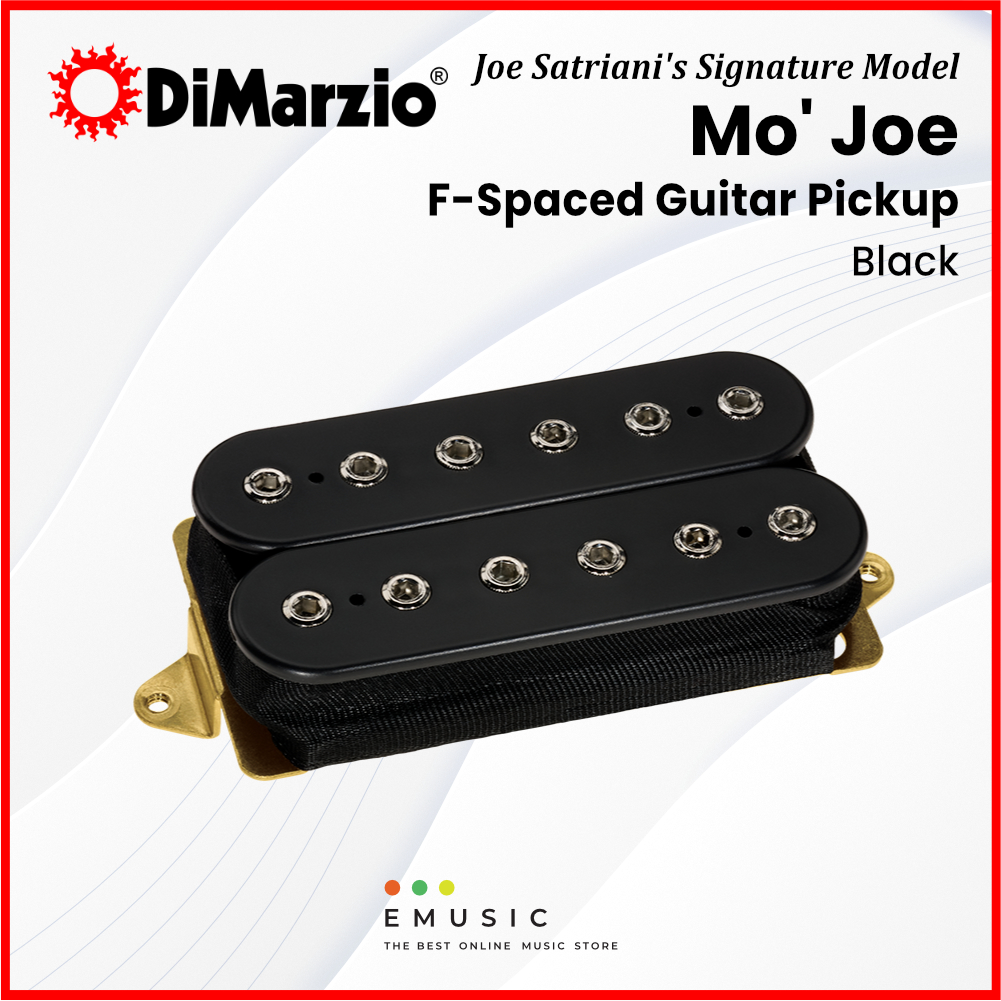

Take your guitar tone to new heights with the DiMarzio DP216 Mo’ Joe Joe Satriani Signature Humbucker Pickup, a powerful and expressive bridge pickup developed in collaboration with legendary guitarist Joe Satriani. Designed to deliver exceptional tone, clarity, and dynamic response, the Mo’ Joe combines the rich harmonic character of the original DiMarzio FRED pickup with increased output for a fuller and more commanding sound.
Developed at Joe Satriani’s request in 2005 and introduced in 2006, the Mo’ Joe was created as a hotter, more powerful alternative to the FRED pickup used in his signature Ibanez guitars. While delivering greater output, it maintains the clarity, harmonic richness, and touch sensitivity that made the original design so popular.
Equipped with a powerful Alnico 5 magnet, the Mo’ Joe delivers a balanced tonal response with strong midrange presence, defined bass frequencies, and smooth treble. Its rated 320mV output provides the power required for energetic rock performances while retaining excellent note separation, even during complex chord voicings and fast lead passages.
One of the Mo’ Joe’s distinctive features is its specially tuned dual-coil design. By adjusting the frequency response of each coil, DiMarzio achieved a more articulate sound without increasing DC resistance. This allows guitarists to enjoy rich harmonic overtones, clear string separation, and expressive picking dynamics without an overly compressed or processed sound.
Designed primarily for the bridge position of solid-body and semi-hollow electric guitars, the Mo’ Joe is an excellent choice for players seeking versatile rock tones. It pairs particularly well with DiMarzio’s PAF Joe neck pickup, creating a balanced combination for everything from warm rhythm passages to singing lead guitar solos.
The pickup also features four-conductor wiring, allowing additional tonal possibilities through coil-splitting and series/parallel wiring configurations when installed with compatible switching electronics.

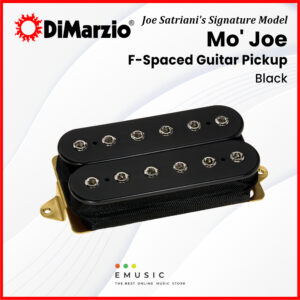

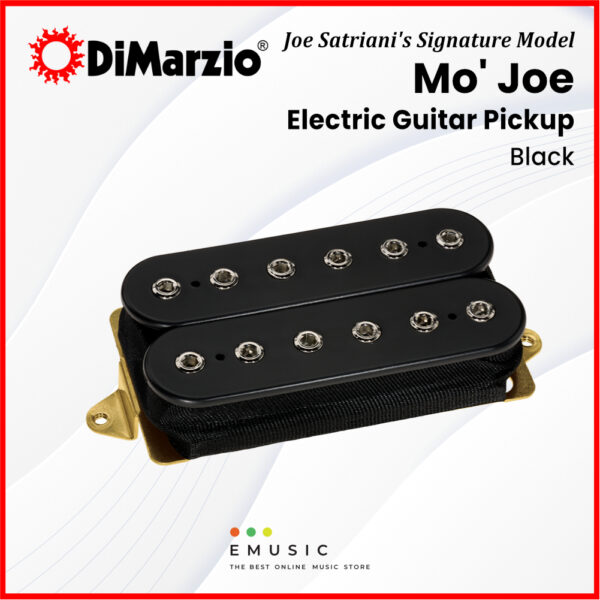

Available in Standard Spacing (DP216BK) and F-Spaced (DP216FBK), both variations feature the same black finish, magnetic construction, and tonal characteristics. Standard spacing suits many conventional humbucker installations, while F-spacing provides wider pole-piece alignment for guitars equipped with certain tremolo systems or wider bridge string spacing.
Whether you’re upgrading your guitar’s original bridge pickup or searching for Joe Satriani’s expressive signature tone, the DiMarzio Mo’ Joe Humbucker Pickup offers an exceptional combination of power, harmonics, clarity, and dynamic versatility.
| Brand | DiMarzio |
|---|---|
| Model | DP216 Mo’ Joe |
| Series | Joe Satriani Signature |
| Product Type | Electric Guitar Humbucker Pickup |
| Signature Artist | Joe Satriani |
| Pickup Configuration | Full-Size Humbucker |
| Pickup Design | Passive, Medium/High-Output |
| Recommended Position | Bridge |
| Recommended Guitar Types | Solid-Body and Semi-Hollow Electric Guitars |
| Magnet Type | Alnico 5 |
| Wiring | 4-Conductor |
| Wiring Options | Series Humbucking, Parallel Humbucking, Coil Splitting |
| Quick Connect | No |
| DC Resistance | 9.76 kOhm |
| Output | 320 mV |
| Bass EQ | 4.0 |
| Low Mid EQ | 5.5 |
| High Mid EQ | 5.5 |
| Treble EQ | 4.5 |
| Available Spacing | Standard / F-Spaced |
| Model – Standard | DP216BK |
| Model – F-Spaced | DP216FBK |
| Colour | Black |
| Compatible Instruments | 6-String Electric Guitars with Compatible Humbucker Routing and String Spacing |
| Recommended Neck Pairing | DiMarzio PAF Joe (DP213) |
| Battery Required | No |
| Year Introduced | 2006 |
| Country of Origin | USA |
| Package Contents | 1 x Mo’ Joe Humbucker Pickup |
