DiMarzio DP207 D Sonic High-Output Humbucker Electric Guitar Bridge Pickup – Black, Cream

Original price was: RM455.00.Current price is: RM386.75.

  • 390mV High-Output Humbucker – Delivers strong output with clarity and articulation for rock, metal, and high-gain performances.
  • Innovative Asymmetrical Pole-Piece Design – Combines a continuous bar with adjustable pole pieces for distinctive tonal characteristics.
  • Reversible Installation Orientation – Choose a tighter, brighter sound or a warmer, slightly louder response by changing pickup orientation.
  • Powerful Ceramic Magnet – Provides focused attack, controlled low frequencies, and clear note separation.
  • Four-Conductor Wiring – Supports two different split-coil sounds and parallel humbucking with compatible switching electronics.
  • Two F-Spaced Colour Options – Available in Black and Cream for compatible electric guitars requiring wider bridge pole-piece spacing.
Pre-Order
WhatsApp Us
DiMarzio DP207 D Sonic High-Output Humbucker Electric Guitar Bridge Pickup – Black, Cream

Experience powerful output, exceptional clarity, and versatile tonal performance with the DiMarzio DP207 D Sonic Humbucker Pickup, a high-output replacement pickup designed for guitarists who demand precise articulation and aggressive sound. Combining tight low frequencies, rich midrange, and expressive harmonic response, the D Sonic is particularly suitable for hard rock, progressive metal, and modern high-gain guitar playing.

Developed to deliver outstanding clarity under demanding playing conditions, the D Sonic features an innovative asymmetrical pole-piece design, combining a continuous metal bar on one coil with individual adjustable pole pieces on the other. This distinctive construction allows guitarists to influence the pickup’s tonal response simply by changing its installation orientation.

When installed with the solid bar facing the bridge, the D Sonic produces a brighter, tighter, and more defined sound. DiMarzio recommends this arrangement for heavy-gauge strings and lower tunings, where a controlled low-frequency response is particularly important. Alternatively, positioning the adjustable pole pieces towards the bridge produces a warmer, slightly louder tone, well suited to standard tuning and expressive lead guitar performances.

Equipped with a ceramic magnet, the D Sonic delivers a strong attack, clear note separation, and powerful output. Its manufacturer-rated 390mV signal provides ample power for driving high-gain amplifiers while maintaining the definition needed for complex chords, fast picking passages, and melodic solos.

The pickup’s unique construction also offers additional tonal versatility. Featuring four-conductor wiring, the D Sonic supports its standard series humbucking configuration, two distinct split-coil sounds, and parallel humbucking. Because the two coils have different tonal characteristics, players can explore a broader range of clean and overdriven sounds when using compatible switching electronics.

Designed primarily for the bridge position of solid-body electric guitars, the D Sonic combines powerful performance with expressive dynamics. Its passive design requires no battery and works with conventional guitar electronics.

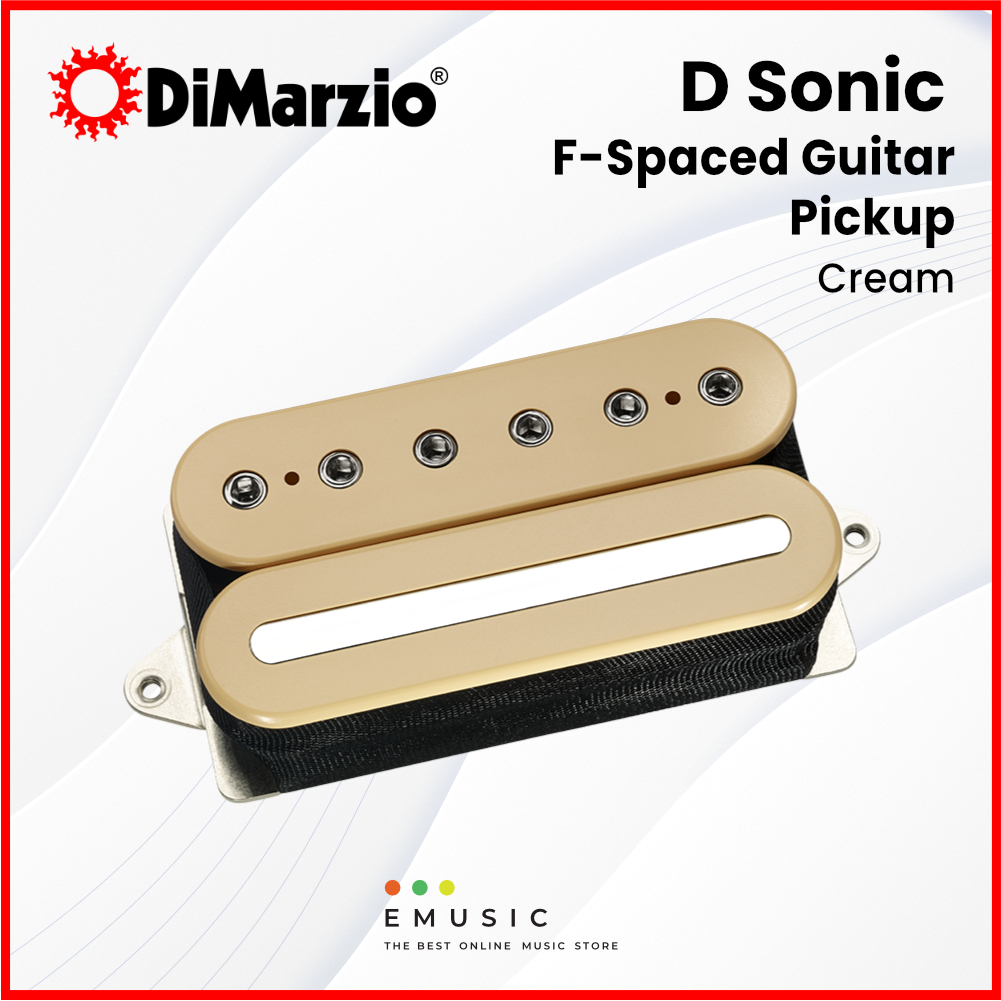

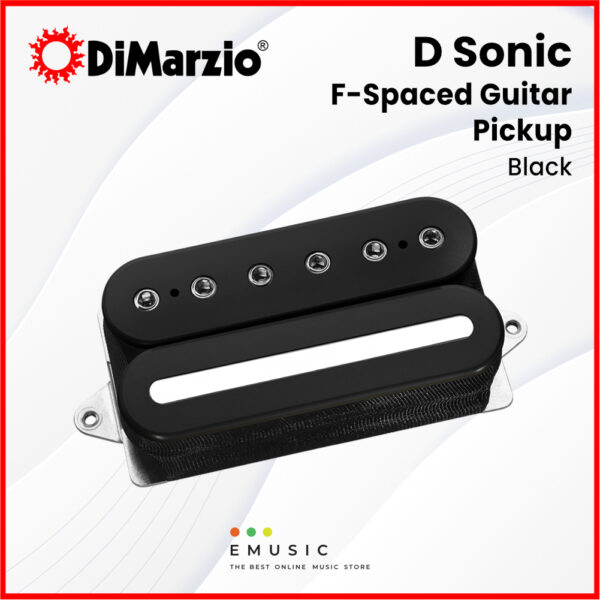

Available in Black (DP207FBK) and Cream (DP207FCR), both versions feature F-spaced pole pieces for compatible guitars with wider string spacing at the bridge.

Whether you’re playing aggressive rhythm guitar, progressive rock, or high-gain lead passages, the DiMarzio D Sonic delivers a compelling combination of strong output, articulate response, and exceptional tonal flexibility.






Specifications
BrandDiMarzio
ModelDP207 D Sonic
SeriesD Sonic
Product TypeElectric Guitar Humbucker Pickup
Pickup ConfigurationFull-Size Humbucker
Pickup DesignPassive, High-Output
Recommended PositionBridge
Recommended Guitar TypeSolid-Body Electric Guitar
Magnet TypeCeramic
Pole Piece DesignOne Solid Bar Coil and One Adjustable Pole-Piece Coil
Wiring4-Conductor
Wiring OptionsSeries Humbucking, Parallel Humbucking, Two Distinct Coil-Split Sounds
Quick ConnectNo
DC Resistance11.96 kOhm
Output390 mV
Bass EQ6.0
Low Mid EQ6.0
High Mid EQ5.5
Treble EQ4.5
String SpacingF-Spaced
Available ColoursBlack / Cream
Model – BlackDP207FBK
Model – CreamDP207FCR
Compatible Instruments6-String Electric Guitars with Compatible Full-Size Humbucker Routing
Recommended Electronics500kOhm Volume Pot, 500kOhm Tone Pot, 0.022uF Capacitor
Battery RequiredNo
Year Introduced2003
Package Contents1 x D Sonic Humbucker Pickup
