DiMarzio D Activator Bridge High-Output Humbucker – Black

Original price was: RM360.00 – RM540.00Price range: RM360.00 through RM540.00.Current price is: RM306.00 – RM459.00Price range: RM306.00 through RM459.00.

  • Active-Inspired High-Output Performance – Delivers a powerful 470mV output with the focused attack associated with active humbuckers.
  • Battery-Free Passive Design – Provides aggressive sound without requiring batteries or active pickup electronics.
  • High-Performance Ceramic Magnet – Produces tight bass, articulate mids, and clear highs suited to high-gain guitar playing.
  • Exceptional Dynamic Response – Responds naturally to picking intensity without excessive compression during aggressive performances.
  • Four-Conductor Wiring – Supports coil splitting and parallel humbucking when installed with compatible switching electronics.
  • Standard and F-Spaced Options – Available in two Black versions for improved pole-piece alignment with different guitar bridge configurations.
Pre-Order
WhatsApp Us
DiMarzio D Activator Bridge High-Output Humbucker – Black

Experience powerful output, exceptional clarity, and aggressive tonal response with the DiMarzio DP220 D Activator Bridge Humbucker Pickup, a high-performance replacement pickup designed for guitarists seeking the focused attack of active pickups without the need for batteries.

Developed to combine the best characteristics of active and passive pickup designs, the D Activator Bridge delivers a strong, immediate response with tight bass frequencies, articulate midrange, and clear, cutting highs. Its high-output performance makes it particularly suitable for hard rock, metal, progressive rock, and other demanding musical styles.

Unlike traditional high-output passive humbuckers that may become excessively compressed when played aggressively, the D Activator Bridge is engineered to maintain excellent dynamic sensitivity and headroom. Its responsive construction accurately follows changes in picking intensity, allowing powerful rhythm passages and expressive lead lines to retain clarity and definition.

Equipped with a ceramic magnet, the DP220 delivers a precise attack and strong harmonic presence. Its manufacturer-rated 470mV output provides substantial power for driving compatible guitar amplifiers while maintaining a focused, controlled sound that remains articulate under high-gain conditions.

One of the pickup’s defining features is its active-inspired tonal character. The D Activator Bridge produces a firm, immediate attack similar to popular active humbuckers, but its fully passive design allows the guitar’s natural playing dynamics to remain expressive. Lighter picking produces a cleaner response, while harder picking delivers greater intensity without excessive signal compression.

The pickup also features four-conductor wiring, supporting additional configurations such as coil splitting and parallel humbucking when installed with compatible switching electronics. Its battery-free construction makes it suitable for conventional passive guitar control systems.

Designed primarily for the bridge position of six-string electric guitars, the D Activator Bridge pairs particularly well with the DiMarzio D Activator Neck pickup, which is voiced and output-balanced to complement it.

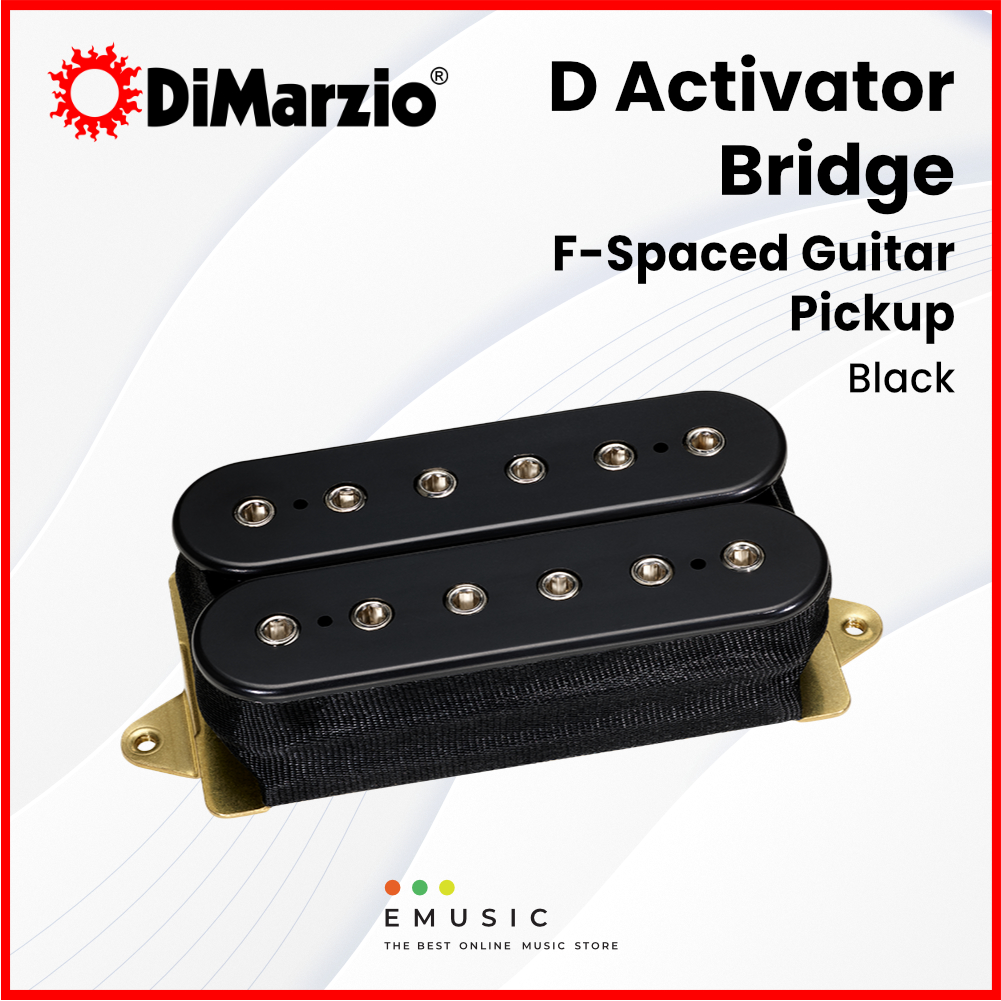

Available in Black with Standard Spacing (DP220BK) and Black with F-Spacing (DP220FBK), both variations deliver identical core electrical specifications and tonal performance. The different pole-piece spacing options allow players to select the appropriate alignment for their guitar’s bridge configuration.

Whether you’re upgrading your guitar for modern metal, aggressive rock rhythms, or expressive high-gain lead performances, the DiMarzio D Activator Bridge offers outstanding power, exceptional articulation, and responsive passive performance.






Specifications
BrandDiMarzio
ModelDP220 D Activator Bridge
SeriesD Activator
Product TypeElectric Guitar Humbucker Pickup
Pickup ConfigurationFull-Size Humbucker
Pickup DesignPassive, High-Output
Recommended PositionBridge
Magnet TypeCeramic
Wiring4-Conductor
Wiring OptionsSeries Humbucking, Parallel Humbucking, Coil Splitting
Quick ConnectNo
DC Resistance11.41 kOhm
Output470 mV
Bass EQ5.5
Low Mid EQ5.5
High Mid EQ6.5
Treble EQ4.0
String Spacing OptionsStandard / F-Spaced
Model – StandardDP220BK
Model – F-SpacedDP220FBK
ColourBlack
Compatible Instruments6-String Electric Guitars with Compatible Full-Size Humbucker Routing
Recommended Neck PairingDiMarzio D Activator Neck (DP219)
Recommended Volume Pot500kOhm
Recommended Tone Pot500kOhm
Recommended Tone Capacitor0.022 uF
Battery RequiredNo
Year Introduced2007
Package Contents1 x D Activator Bridge Pickup
